Life Raft Cradles & Stacking Frames

CO’2 Bottle Storage Racks

Life Raft Cradles with Optional Stacking frames for Offshore Applications

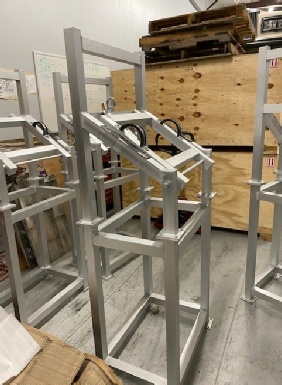

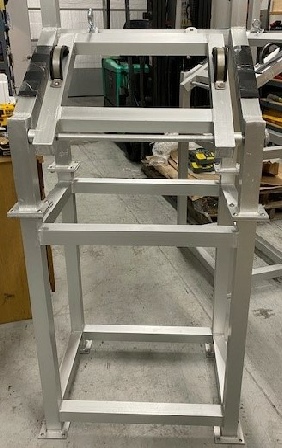

RSS build and supply life raft cradles for our MES systems which in most cases are integrated into the systems, however we also build and supply stand alone deck mounted cradles suitable for all size A/B pack rafts up to 50 man capacity. The pictures shown above are cradles we designed and built for a customer offshore Mexico who wanted to retain there handrails without the need to cut them to accommodate the life rafts cradles. RSS designed and built purpose stacking frames that enabled the cradles to be bolted to a lower frame providing the height required to deploy over the top of the hand rails thus alleviating the need to cut and modify the handrails.

These cradles are supplied in aluminum and are light weight with a top drop down frame that releases the rafts to sea when deployed. Designed to be simple mechanical with limited moving parts to reduce the risk of failure to the lowest acceptable levels.

RSS can build and supply life rafts cradles that are single or multiple inclined cradles for deploying multiple stacked rafts, please contact us we will be happy to provide a quotation to build and supply life raft cradles in any design or configuration you require.

Breakdown of Components UPPER LIFE RAFT CRADLE: -

1. Life Raft Cradle frame constructed from aluminum and anodized.

2. Front release frame constructed from aluminum and anodized.

3. Deployment Control Arm with Split Pin

4. Qty 4 x - 4’ x 4” mounting plates to enable bolting to lower stacking frame’s when used.

Optional - Breakdown of Components LOWER STACKING FRAME: -

1. Lower main frame constructed from aluminum and anodized.

2. Qty 4 x - 4’ x 4” mounting plates to enable bolting to upper life raft cradle.

3. Qty 4 x - 4’ x 4” mounting plates to enable bolting to rig deck plates.

Please refer to GA Drawings: -

1. Please refer to the attached PDF showing design drawings (RSS-US-20-08-18), (RSS-US-20-08-19), (RSS-US-20-08-20), (20-RC-01125)

Inspection & Assembly Prior to Installation

The RSS Life Raft Cradles and optional Stacking Frames are designed to enable a containerized life raft to be deployed to sea without the need to cut the facilities hand- rails. The system is designed in two parts the main standard life raft cradle that can be used as a stand-alone unit or in this case used with the purpose-built stacking frame.

Each Life Raft Cradle undergo’s a full FAT inspection prior to shipping to ensure that the units perform as designed with all findings fully documented. The Life Raft Cradles are constructed from aluminum tubing which has been anodized to ensure maximum longevity in an offshore salt laden environment and a 24-month warranty is provided by RSS for cases of failure of any part component of either the Life Raft Cradle or is supplied the Lower Stacking Frames. The warranty does not cover misuse of the product from incorrect assembly, installation or operating.

Model Numbers and Suitable for the following life raft container size:

Model Number	Size of Raft	Single Deck Mounted	Description	Fitting
RSS-LRC-12-01-AL-HD	12	Single Raft	Single Life Raft Cradle Aluminum Anodized	Bolt down to deck, grating or suitable structural arrangement
RSS-LRC-16-01-AL-HD	16	Single Raft	Single Life Raft Cradle Aluminum Anodized	Bolt down to deck, grating or suitable structural arrangement
RSS-LRC-20-01-AL-HD	20	Single Raft	Single Life Raft Cradle Aluminum Anodized	Bolt down to deck, grating or suitable structural arrangement
RSS-LRC-25-01-AL-HD	25	Single Raft	Single Life Raft Cradle Aluminum Anodized	Bolt down to deck, grating or suitable structural arrangement
RSS-LRC-35-01-AL-HD	35	Single Raft	Single Life Raft Cradle Aluminum Anodized	Bolt down to deck, grating or suitable structural arrangement
RSS-LRC-50-01-AL-HD	50	Single Raft	Single Life Raft Cradle Aluminum Anodized	Bolt down to deck, grating or suitable structural arrangement

Model Number Stacking Frames	Size of Raft	Single Deck Mounted	Description	Fitting
RSS-SF12-01-AL-HD	12	Single Raft	Single Stacking Frame Cradle Aluminum Anodized	Bolt down to deck, grating or suitable structural arrangement
RSS-SF16-01-AL-HD	16	Single Raft	Single Stacking Frame Cradle Aluminum Anodized	Bolt down to deck, grating or suitable structural arrangement
RSS-SF-20-01-AL-HD	20	Single Raft	Single Stacking Frame Cradle Aluminum Anodized	Bolt down to deck, grating or suitable structural arrangement
RSS-SF-25-01-AL-HD	25	Single Raft	Single Stacking Frame Cradle Aluminum Anodized	Bolt down to deck, grating or suitable structural arrangement
RSS-SF-35-01-AL-HD	35	Single Raft	Single Stacking Frame Cradle Aluminum Anodized	Bolt down to deck, grating or suitable structural arrangement
RSS-SF-50-01-AL-HD	50	Single Raft	Single Stacking Frame Cradle Aluminum Anodized	Bolt down to deck, grating or suitable structural arrangement

Notes*

RSS can build and supply life raft cradles with multi stacking capability suitable for:

Dual Vertical life raft cradles
Three Vertical life raft cradles
Four Vertical life raft cradles
Framed cradles designed to store up to eight rafts

PDF Downloads

GA Drawings

Basis of Design

For more information, please call and one of our representatives, we will be happy to answer any questions you may have.
